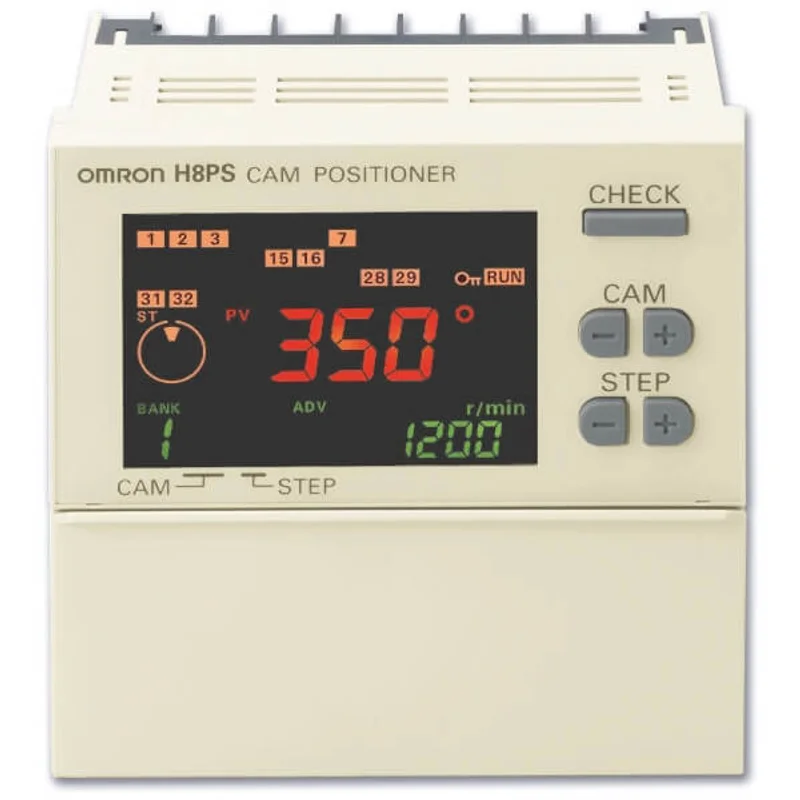

H8PS-16BP• H8PS
CAM PROGRAMMER 16 OUT PNP 100MA 30V
Technical specifications
Flush mounting, 160 switching points, 24 VDC, 1600 rpm max. at 256/360 resolution, 16 outputs, PNP, 8 memory banks, connector connection
Features
The H8PS offers high-speed operation at 1600 rpm and high-precision settings at 0.5° for numerous applications. It features a highly visible backlit LCD screen. Angle advance compensation function for output delay compensation. H 96 x W 96 x D 65 mm
Panel/DIN rail mounting
24 VDC
8, 16 and 32 outputs
NPN/PNP 100 mA at 30 VDC
