G7SA-2A2B 18VDC• G7S/ Sockets

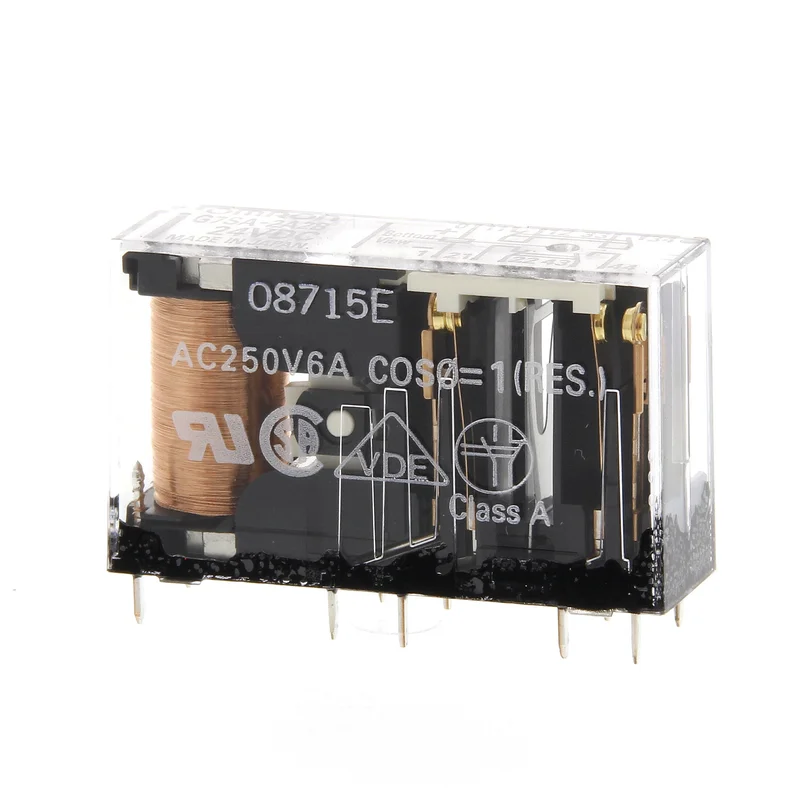

SAFETY RELAY 2 NO+2NC 6A 18V
Technical specifications
Safety relay, G7SA range, 4 contacts, 2 NO + 2 NC, NO contacts rated current: 6A, control voltage 18 VDC, forcibly guided contacts according to EN 50205 Class A
Features
The G7SA slim relay range with guided contacts includes four or six-pole models in various contact combinations and features reinforced insulation. The terminal layout simplifies PCB design. They can be soldered directly onto printed circuit boards or used with P7SA sockets.
Forcibly guided contacts
Compliant with EN 50205
6 A at 240 VAC and 6 A at 24 VDC for resistive loads
Reinforced insulation between inputs, outputs and poles
4 or 6-pole relays available
Sockets available with Push-in Plus technology
